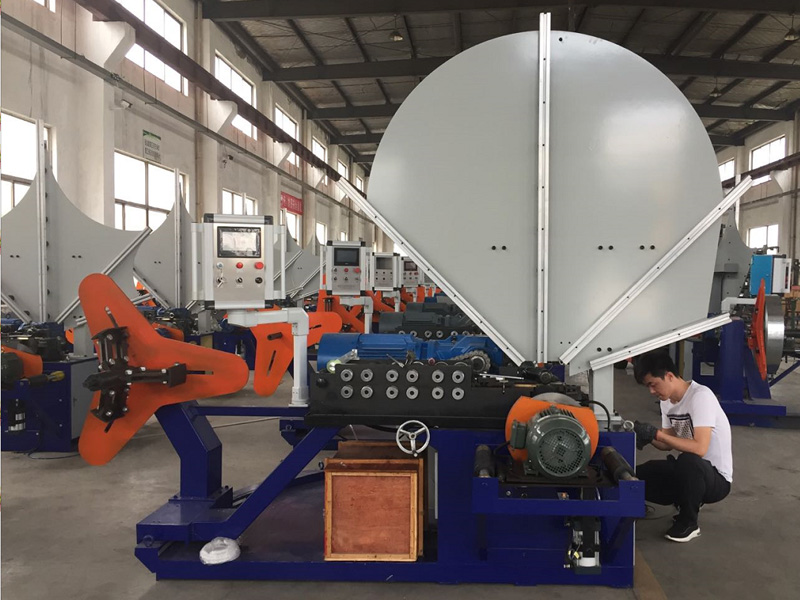

  This spiroduct machine produces straight spiral ducts and is mainly applied in the HVAC (air conditioning) industry, but also in the mining, civil engineering and construction industries.
  This team of spiroducto makes helical tubes with fine finishes. It can also produce corrugated ducts that reduce material costs and make ducts with a larger diameter more rigid; and obtaining a quality seam in the duct.
  The machine has a cutting roller device; to manufacture the ducts in different lengths and diameters.
  • PARAMETERN
Model: 1500C
Diameter range: 80mm-1600mm
Sheet thickness: 0.4-1.5mm (galvanized sheet) 0.5mm-1.5mm (aluminum sheet) 0.4-1.0mm (stainless steel)
Tube length: 100-20000mm
Processing speed: 1-36m / min

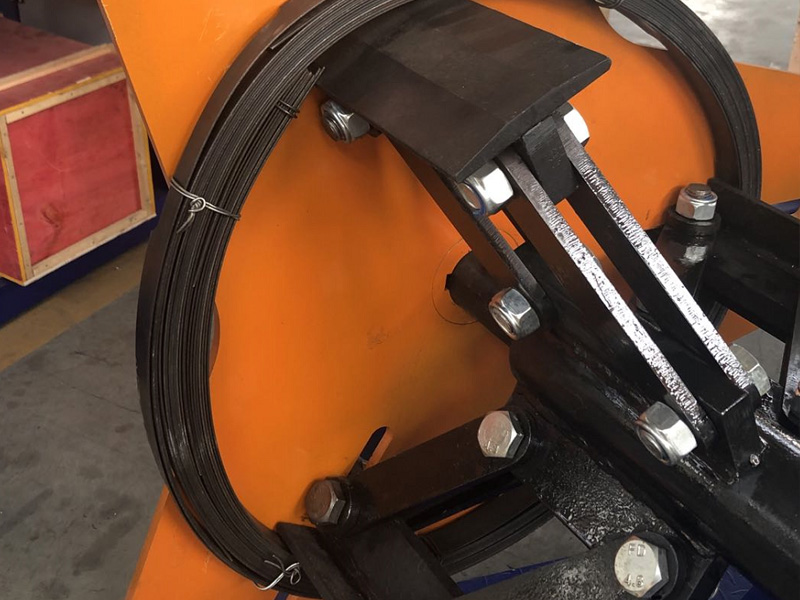

Vertical uncoiler: 1. Inner roll 450-500mm 2. Outer roll 1500mm Maximum load 1500KG
Locking method: external lock can be locked according to customer needs
Mold produced: steel strap fixed mold three point adjustment
Motor power: 11kw / 380V
Cutting method: saw blade cutting and plasma cutting
Processing board width: 137mm-140mm
Electronic control system: PLC computer control.
Pneumatic power: 0.5-0.7Mpa
Supply voltage: 380V / 50HZ (Optional)
Weight: 2800KG
Equipment size: 3500 × 2200 × 2850mm
