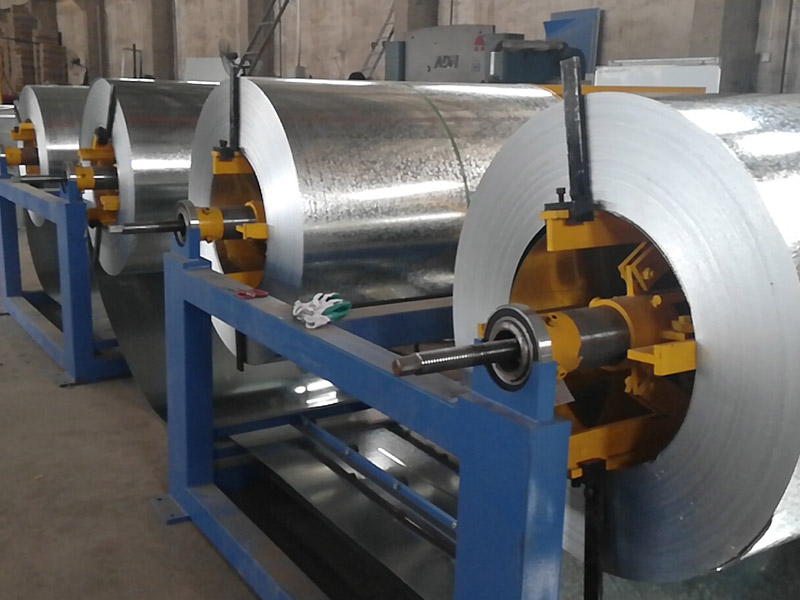

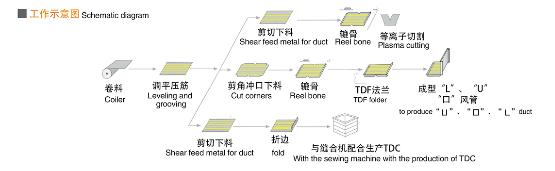

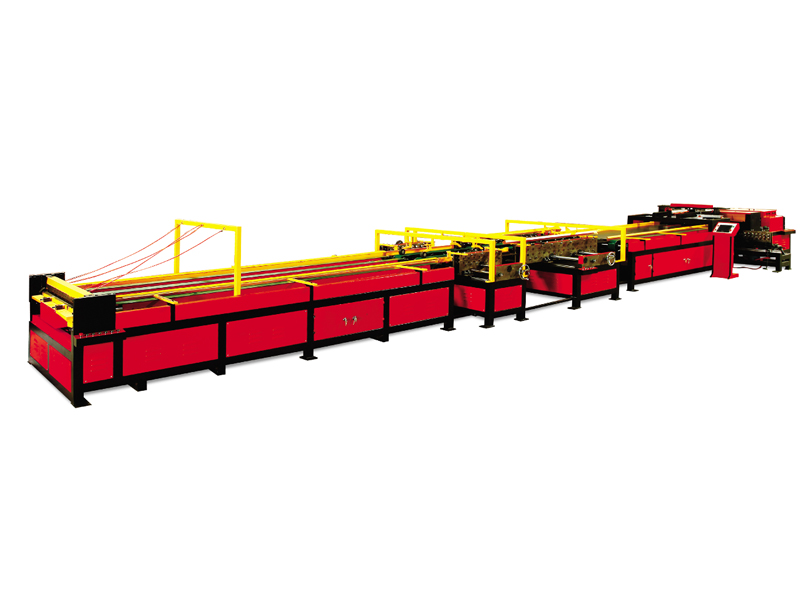

Auto Rectangular Duct Machine Line 5The Auto Rectangular Duct Machine Line 5 is designed for efficiently processing standard straight pipes. With a user-friendly setup, simply input the duct dimensions, and this machine will automatically handle the entire production process. From coiled material decoiling and leveling to length measuring, punching square openings, fixed-length shearing, joint angle nipping, and hydraulic folding, all operations can be completed with just 1-2 operators monitoring the system.

Key Features:

• Streamlined Design: The linear layout minimizes space requirements and allows for simple installation, making it ideal for small and medium-sized manufacturers.
• High Production Capacity: Achieve a daily production of over 1,500 square meters with an automatic material-saving mode that eliminates waste.

Additional Benefits:

• Fully Automatic Production: Only requires 2-3 operators for efficient operation.

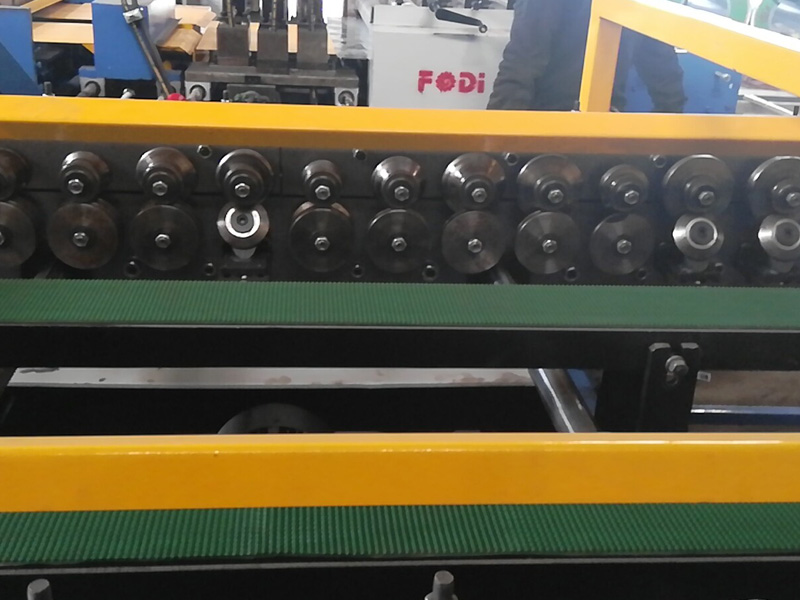

• High-Performance Lift-Type Nipping Machine: Ensures precise and consistent nipping.
• Fast Processing: Produces L-type wind tubes in just 26-28 seconds per piece.
• Innovative Design: New shaping and molding techniques guarantee excellent flange straightness without damaging the zinc coating.
• Compact Footprint: Covers an area of 28 x 4 m.

The Auto Rectangular Duct Machine Line 5 revolutionizes your production capabilities with speed, precision, and reliability. Contact us today to learn more or request a personalized quote!
