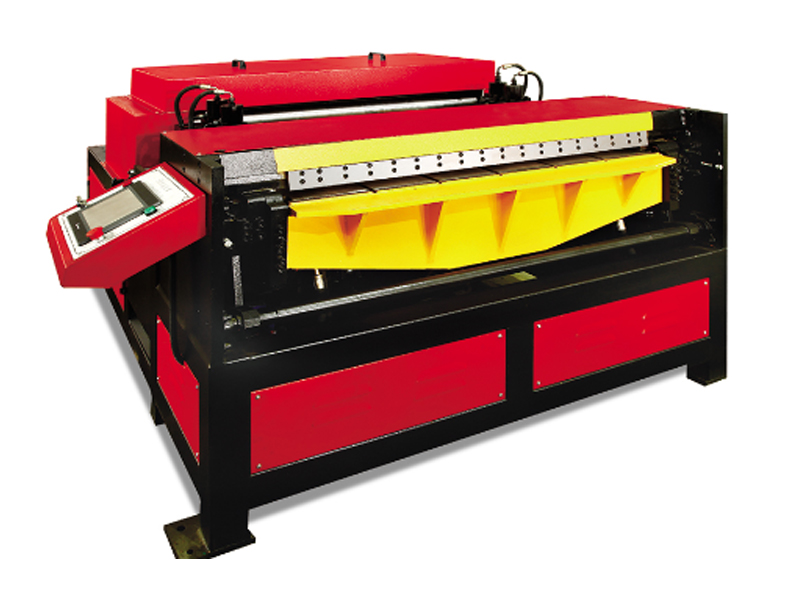

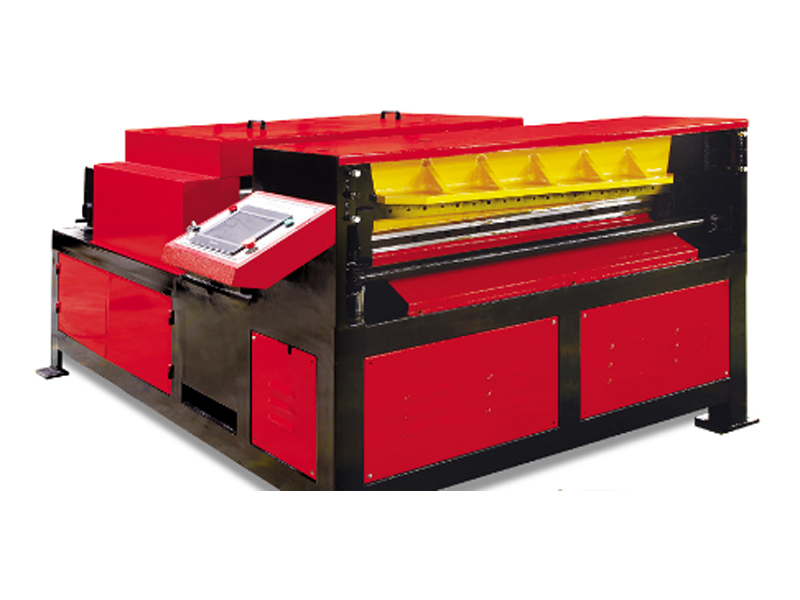

Auto Rectangular Duct Line 2
The Auto Rectangular Duct Line 2 is engineered for high-precision fabrication of rectangular ducts, combining advanced technology with robust design to enhance efficiency and accuracy in production.
Key Features:
-
Complete Set of Equipment: Includes a metal feeding frame, leveling and grooving equipment, notching and punching equipment, cutting machinery, and an electrical control system.
-
Precision Control: Utilizes a computer-controlled closed-loop servo system, ensuring maximum working speed of 16 m/min with a length tolerance of ±0.5 mm and a diagonal tolerance of ±0.8 mm.
-
Customizable Feeding Frame: The feeding frame can be tailored to meet specific customer requirements.
Equipment Specifications:
-
Electric Feeding Machine Frame: Features two internal-shoring material cores.
-
Leveling Compact Bar Equipment: Ensures accurate leveling of materials.
-
Hydraulic Pressure Attack Angle Molding: Four sets for optimal shaping.
-
Hydraulic Shear Plate Equipment: Cuts materials with precision.
-
Digital Controlling System: Provides user-friendly operation.
-
Hydraulic Pressure System: Enhances cutting and shaping processes.
Additional Advantages:
-
Superior Materials: Constructed with high-quality 45# steel rollers, featuring hard chromium plating for durability.
-
Efficient Leveling: Ten-roll leveling mechanism for consistent performance.
-

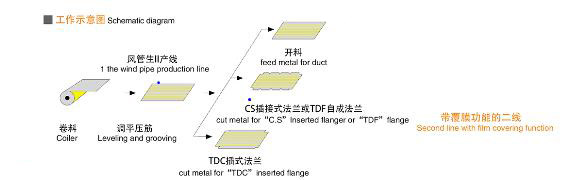

Film Covering Function: Protects finished products during handling.
-
Versatile Cutting Capabilities: Can shear ordinary plates (up to 3 mm) and stainless steel (up to 1.5 mm).
Technical Parameters:
-
Thickness: 0.5 - 1.2 mm (Galvanized Steel)
-
Coiler Width Options: 1000-1250 mm or 1220-1530 mm
-
Weight Capacity: ≤6000 kg
-
Working Speed: Up to 15 m/min
-
Length Error: ±0.5 mm
-
Diagonal Error: ±0.8 mm
-
Dimensions: 7 x 1.8 x 1.6 m or 7 x 2.1 x 1.6 m
-
Weight: 4500 kg or 5000 kg
-
Motor Power: 10 kW
The Auto Rectangular Duct Line 2 enhances your production capabilities with precision, speed, and reliability. Contact us today to learn more or request a quote!
