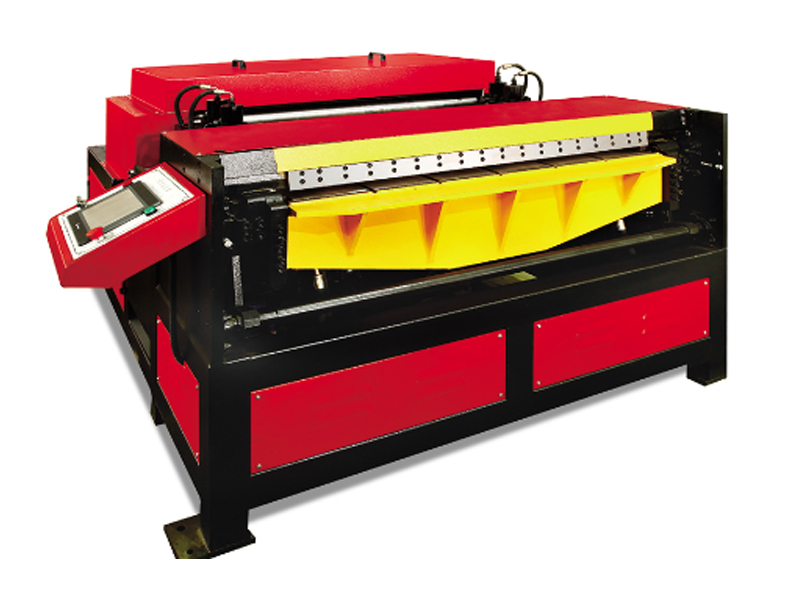

Auto Rectangular Duct Machine Line 3

The Auto Rectangular Duct Machine Line 3 is the ideal solution for manufacturing square air ducts, enhancing both work efficiency and the aesthetic quality of the final product. This advanced machine can produce TDC and TDF flanges and includes a comprehensive setup designed for precision and reliability.

Key Features:

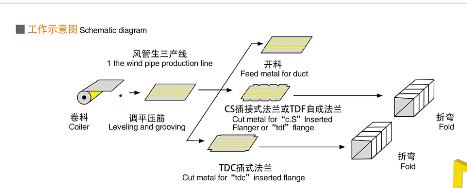

• Complete Production Line: Consists of a metal feeding frame, leveling and grooving equipment, hydraulic punching for square notches, a hydraulic cutter, and a computer-controlled electrical system.
• Precision Engineering: Utilizes a closed-loop servo system to ensure accurate and reliable duct manufacturing.

Equipment Specifications:

1. Two Electric Feeding Machine Frames: Equipped with four internal-shoring material cores.
2. Leveling Compact Bar Equipment: Guarantees precise leveling of materials.
3. Hydraulic Pressure Attack Angle Molding: Four sets for optimal shaping.
4. Hydraulic Shear Plate Equipment: Ensures clean cuts.
5. Hydraulic Equipment: Enhances operational efficiency.
6. Digital Controlling System: For easy and intuitive operation.
7. Hydraulic Pressure System: Supports various processing tasks.

Technical Parameters:

• Thickness: 0.5 - 1.2 mm (Galvanized Steel)
• Coiler Width Options: 1000-1250 mm or 1220-1530 mm
• Weight Capacity: ≤6000 kg
• Working Speed: Up to 15 m/min
• Length Error: ±0.5 mm
• Diagonal Error: ±0.8 mm
• Dimensions: 10 x 1.8 x 1.6 m or 10 x 2.1 x 1.6 m
• Weight: 5500 kg or 6000 kg
• Motor Power: 11.5 kW

The Auto Rectangular Duct Machine Line 3 elevates your production capabilities with speed, accuracy, and aesthetic quality. Contact us today to learn more or request a personalized quote!
